SERVO PGS-CX 1/8 BUGGY 2018 0,11S/26,5KG 7,4V CORELESS


Κατηγορία: Σέρβο & Χορν
Κατασκευαστής: Sanwa
Κωδικός: S.107A54523A

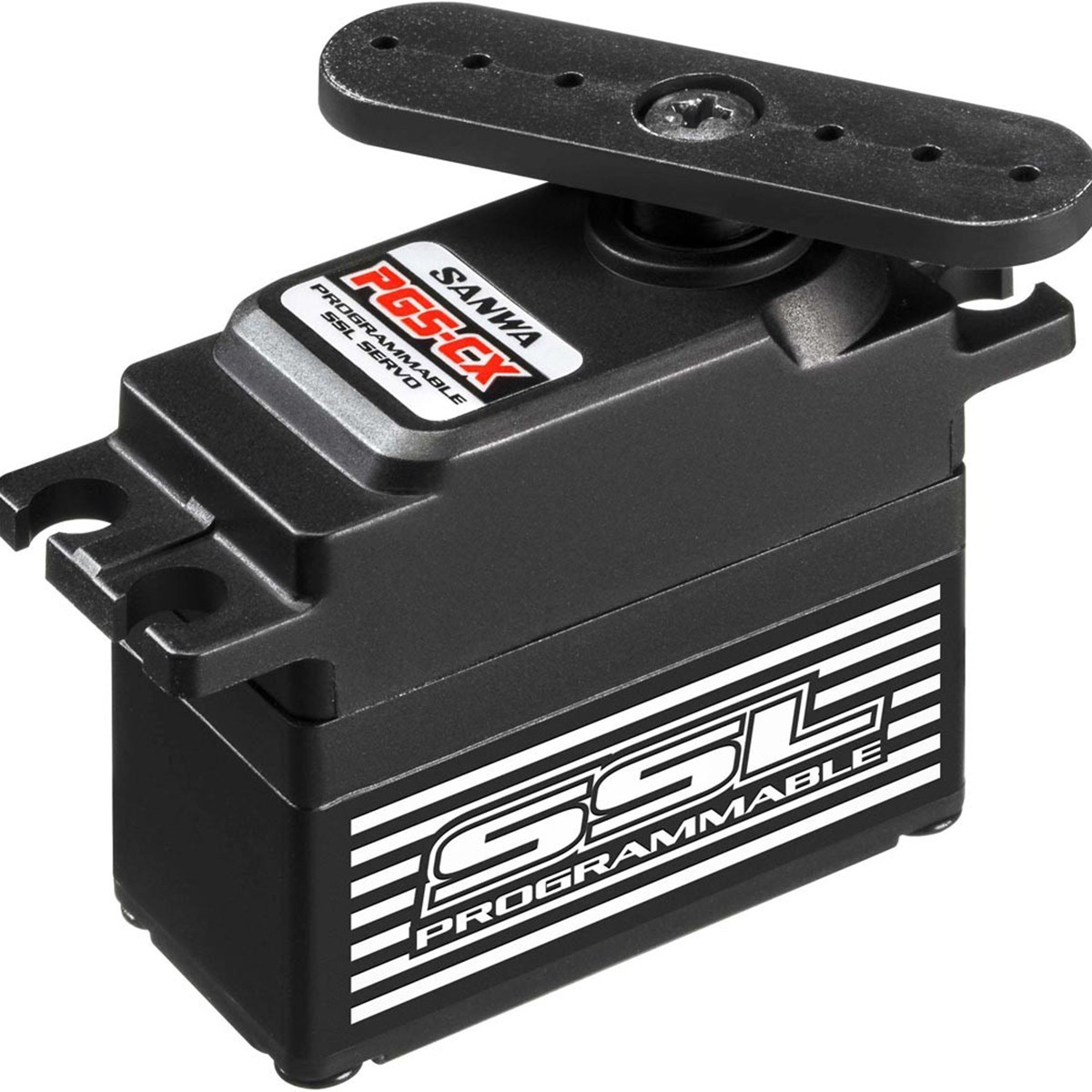

Sanwa PGS-CX Hi-Torque Programmable Servo.


  • SSL compatible programmable servo
  • # Compatible with CODE 10 (M12S (RS), EXZES ZZ, MT-44)
  • Multi-Setting Gear Compatible
  • SUPER RESPONSE (SSR) Mode Compatible
  • HIGH RESPONSE (SHR) Mode Compatible
  • Li-Po 2 Cell Compatible
  • High Speed type
  • Core-Less Motor
  • Metal Gears
  • Aluminum Heat Sink
  • Programmable Servo to be compatible with SSL & Telemetry
  • Setting Adjustment by wireless from Radio
  • Setting Adjustment to connect Servo with Multi Setting Gear
  • Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio (Initial Setting on Multi Setting Gear is necessary).
NOTE: Not compatible with CODE5 (M12, Exzes Z, MT-4S, MT-4, MT-S).

Programmable Settings:

  • SSL-CH (SSL Channel Setting)
  • STRETC (Stretcher Adjustment)
  • BOOST (BOOST Adjustment)
  • D-Band (Dead Band Adjustment)
  • MV-MID (Middle Torque Adjustment)
  • MV-END (Later Torque Adjustment)
  • BREAK (Break Adjustment - Multi Setting Gear is necessary for ◎setting)
  • ◎MV-HOLD (Power Adjustment at whole area)
  • ◎MV-FRQ (Feeling Adjustment at whole area)
  • ◎MAX-PW (MAX Duty Adjustment)
@7.4V: 0.11 sec/60°
@6.0V: 0.13 sec/60°
@7.4V: 368.01 oz-in (26.5 kg-cm)
@6.0V: 323.57 oz-in (23.3 kg-cm)
Dimensions: 40.5 x 20.5 x 37.2 mm
Weight: 59 g
