Περιγραφή:

Features:

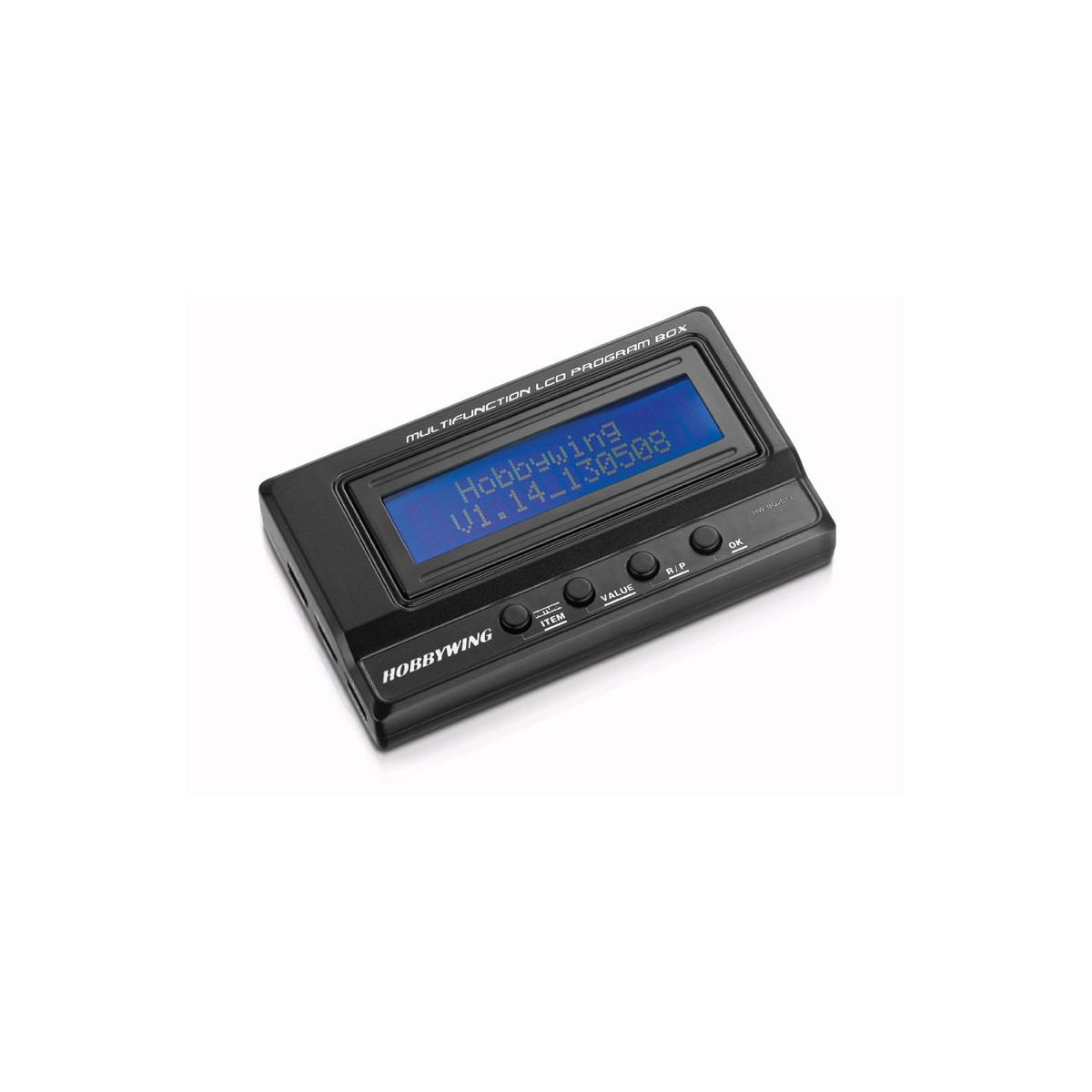

• Works as an individual device to set the ESC, the value of each parameter is displayed on the LCD screen.
• Works as an USB adapter to link the ESC with a PC to update the firmware of the ESC or set the ESC by HOBBYWING USB LINK SOFTWARE .

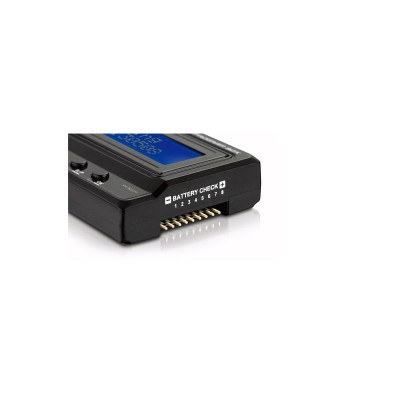

• Works as a Lipo battery voltmeter to measure the voltage of the whole battery pack or each cell.

Specifications:

• Size: 90mm (L) * 51mm (W) * 17mm (H)
• Weight: 65g
• Input Voltage: 4.5-12.6V
  (If the ESC hasnt a built-in BEC, you must use an additional battery pack to supply the program box)
• Displayer: 16*2 characters LCD.
• Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug)

This Multifunction LCD Program Box is suitable for the following ESC:

• XERUN & EZRUN series Car ESC (Version 2.0 and 2.1)
• XERUN-120A V3 & V3.1 ESC
• PLATINUM series helicopter/aircraft ESC
• PLATINUM V3 series helicopter/aircraft ESC

A) The programmable items for the XERUN and EZRUN series car ESC:

Running Mode

Drag Brake Force

Low Voltage Cut-Off Threshold

Start Mode

Maximum Brake Force

Maximum Reverse Force

Initial Brake Force

Throttle Neutral Range

Timing

Over-Heat Protection

Motor Rotation

Lipo Cells Amount

*Note: Some speed controllers have less programmable items, but some have more. Please read the user manual of your speed controller to get detail information.
B) The programmable items for the PLATINUM series airplane ESC:

Brake

Battery Type

Low Voltage Protection Mode (Cutoff Mode)

Low Voltage Protection Threshold (Cutoff Threshold)

Start Mode

Timing

Governor Mode

Reserved Item #1

PWM Frequency

Built-In BEC Output

Reserved Item #2

Lipo Cells Amount

C) The programmable items for the PLATINUM V3 series airplane ESC:

Brake

Battery Type

Low Voltage Protection Mode (Cutoff Mode)

Low Voltage Protection Threshold (Cutoff Threshold)

Flight Mode

Autorotation Restart Time

Timing

PWM Frequency

Built-In BEC Output

Lipo Cells Amount
